Coil Rods / Tie Rods
Quality is not an act, It is a habit.

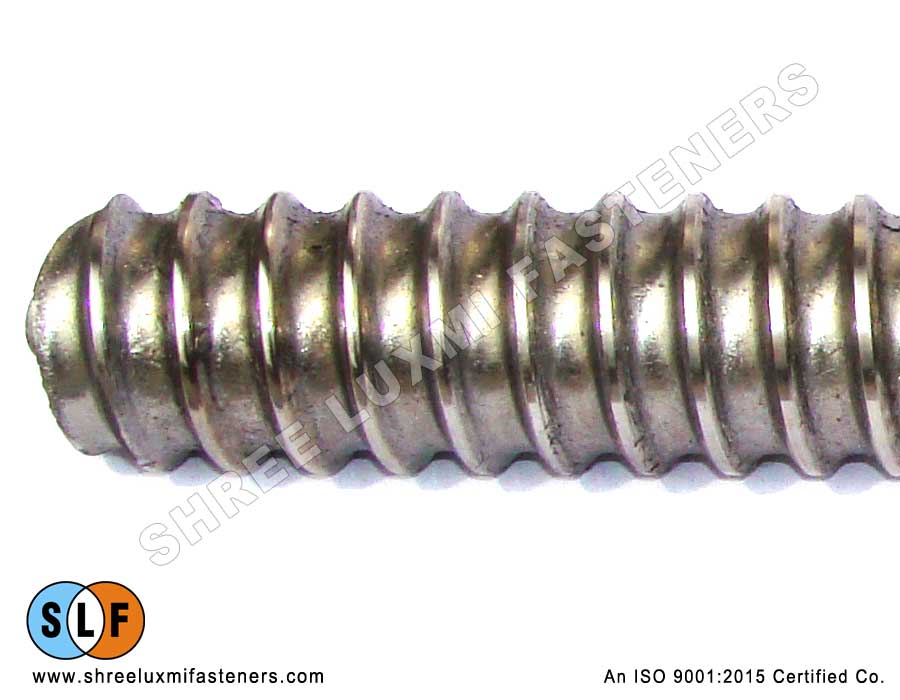

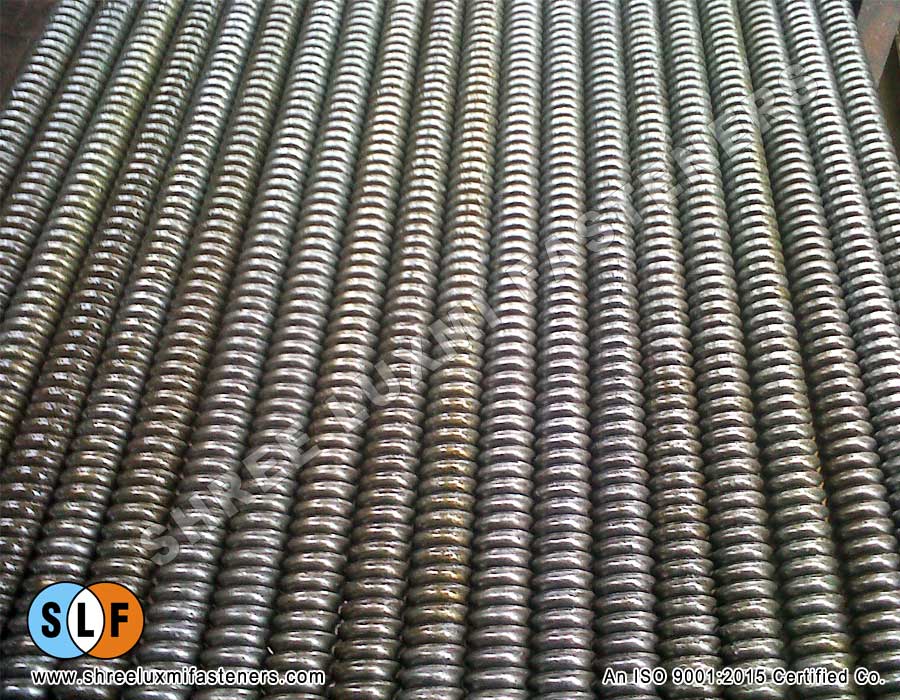

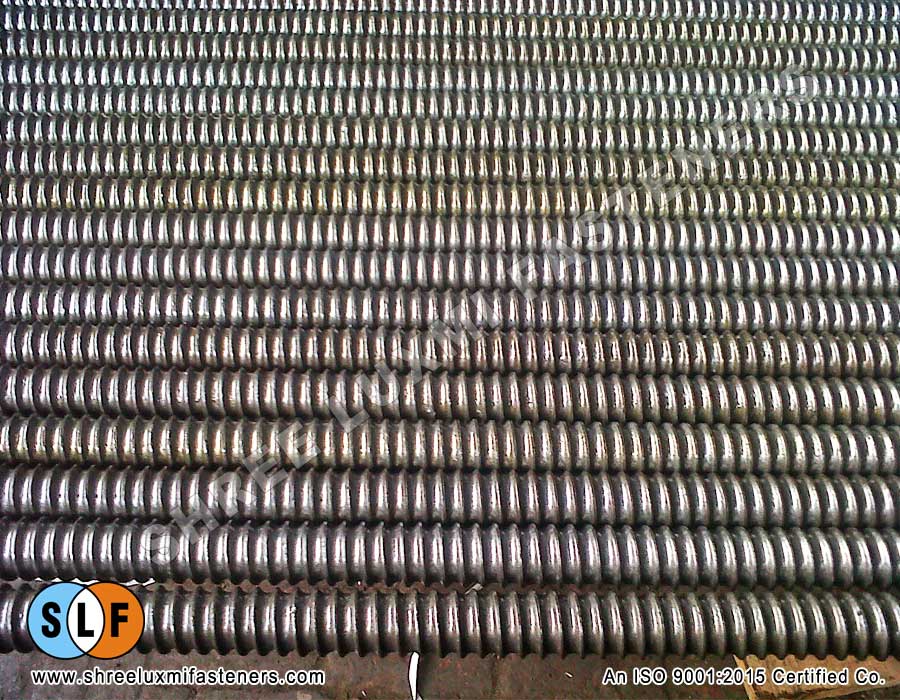

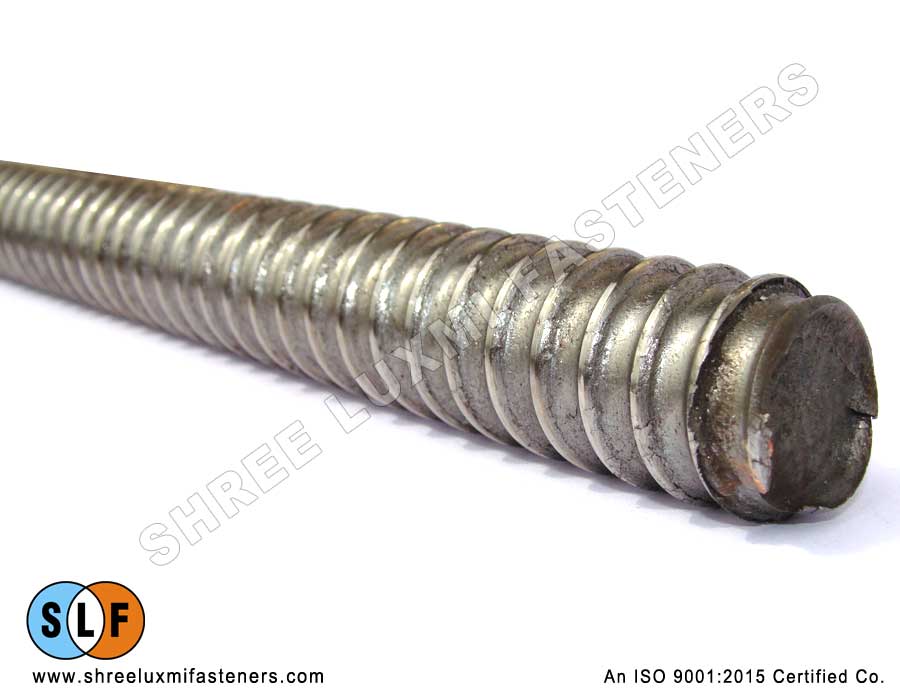

High Tensile Coil Rod is a continuous threaded rod, made from high carbon, cold rolled, 1045 steel. The Coil Rod is manufactured in high-tensile strength in 12 ft standard lengths, in 1/2, 3/4, 1, 1-1/4 and 1-1/2 diameters.
TECHNICAL SPECIFICATION:
| Size | Description | Length | Finish | Min. Tensile Strength | Min. Yield Strength |
| 1/2" Coil Rod | 1/2" - 6 | 12' | Plain | 130,000 psi [896 MPA] | 110,000 psi [757 MPA] |
| 5/8" Coil Rod | 5/8" - 5 | 12' | Plain | 113,000 psi [779 MPA] | 96,000 psi [662 MPA] |
| 3/4" Coil Rod | 3/4" - 4.5 | 12' | Plain | 118,000 psi [814 MPA] | 100,000 psi [689 MPA] |
| 1" Coil Rod | 1" - 3.5 | 12' | Plain | 140,000 psi [965 MPA] | 120,000 psi [827 MPA] |
| 1-1/4" Coil Rod | 1-1/4" - 3.5 | 12' | Plain | 123,000 psi [848 MPA] | 105,000 psi [724 MPA] |
| 1-1/2" Coil Rod | 1-1/2" - 3.5 | 12' | Plain | 100,000 psi [689 MPA] | 85,000 psi [586 MPA] |
Packing for coil rod is as follow:
| Size | Length | PCS/ BNDL |
| 1/2" Coil Rod | 12' | 25 |
| 5/8" Coil Rod | 12' | 15 |
| 3/4" Coil Rod | 12' | 15 |
| 1" Coil Rod | 12' | 10 |
| 1-1/4" Coil Rod | 12' | 5 |
| 1-1/2" Coil Rod | 12' | 5 |
